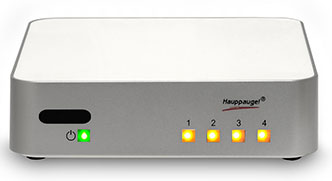

WinTV-quadHD USB

Four HD Digital TV Tuners on USB 3.0/3.1

WinTV-quadHD USB: Watch or record up to four TV programs at a time!

WinTV-quadHD USB features:

4tuner_pip

Watch with 4 tuner Picture-in-picture

Click to enlarge
  • Four tuners for USB 3.0* Uses the new high performance USB Type C connector
  • Watch, pause or record up to four ATSC HD TV programs at the same time
  • Includes a Hauppauge remote control, with built-in IR receiver
  • Includes the WinTV v10 application, which give you TV-in-a-window or TV full screen, plus two or four tuner picture-in-picture
  • ATSC is free HD TV for the U.S. and Canada

ATSC over-the-air digital TV features:

  • ATSC is free over-the-air HD TV. ATSC is broadcast in the US and Canada, and does not require a subscription. ATSC is HD and FREE!
  • WinTV-quadHD has four ATSC over-the-air digital TV tuners. Supports all ATSC formats, up to the highest HD format
  • Watch, pause or record up to four ATSC digital TV programs using high quality MPEG-2. TV recordings will typically consume 5 GB of disk space per hour for ATSC high definition
  • Built-in antenna splitter allows you to make one connection to an ATSC antenna but watch and record up to 4 channels

Note: the WinTV-quadHD is for digital TV only and does not support analog TV

If you need analog TV, any one of the WinTV-HVR products (such as the WinTV-HVR-955Q) include analog TV. The HVR stands for 'hybrid video recorder' and all WinTV-HVR's have both analog and digital TV reception.

Note: WinTV-quadHD USB is designed for USB 3.0 or USB 3.1 ports. USB 2.0 is too slow and does not have enough power for four-tuner operation.

WinTV-quadHD USB Specifications

Bundled software

  • WinTV v10, the new TV application for Windows, with TV pause and recording. When used with the WinTV-quadHD, WinTV v10 also gives you the option of two or four tuner picture-in-picture, watch one TV channel when recording three others or 'Open additional TV window' function to give up to four live TV windows on your PC screen.

Type C

WinTV-quadHD USB is powered by USB Type C

USB Type C: more power, faster throughput!
click to enlarge

Technical specifications

Tuner

  • Supported TV standards:
    • ATSC HD TV
  • Audio: AC-3, Stereo / dual channel sound
  • Antenna input: F connector
  • USB Type C (USB Type A to USB Tybe C cable supplied)
  • Size: 3.94" x 4.1" x 1.1" (10cm x 10.4cm x 2.7cm)
  • Power: 5v @ 1a

TV recording formats

  • Transport stream (the original transmitted format, without any quality loss)

System Requirements

  • Microsoft® Windows 11, 10, 8, 7® or Windows Vista with latest Service Pack, 1 GB RAM
  • Minimum processor: Core2Duo 2.93Ghz or faster
    Note: If your PC is not fast enough, you might see jerky live TV video, but your TV recordings will be fine.
  • USB Type 3.0 port
  • Internet connection for software updates and activations

WinTV-quadHD USB Model Numbers

model 01682: WinTV-quadHD USB
with built-in IR receiver, WinTV v10 application (download), 1 meter USB Type A to USB Type C cable and Hauppauge remote control.

WinTV-quadHD Videos

WinTV v10 Introduction
click to play video
WinTV v10 Installation
click to play video
Setting up Plex TV with a Hauppauge TV tuner on the NVidia Shield
Click to play video
Four tuner Picture-in-Picture
with the WinTV-quadHD
click to play video
Scheduled recording with the built-in EPG
in WinTV v10
click to play video
WinTV v10 scheduling recordings with TitanTV
click to play video
Wipe out your channel database and
rescan for channels
click to play video
Having a problem with Windows Defender Anti-virus when installing? Here's how to temporarily turn off Defender
click to play video
How to change the battery in a
Hauppauge -005 remote control
click to play video

WinTV-quadHD Image Gallery
