ImpactVCB-e new model

Video digitizer for live video and image capture


Low profile video capture board with live overlay which can be used as the heart of live video display, real time video capture, streaming video or video conferencing solutions

The ImpactVCB-e model 01381B board is a half height PCI Express board for Windows 11 and 10 plus Linux with one S-Video and one composite video input, plus audio inputs.

ImpactVCB-e PCI Express board

The ImpactVCB-e is a PCI Express video capture product. Compatible with Windows 11 and 10 (both 64-bit and 32-bit), ImpactVCB-e is a low profile board which is supplied with both a full height and half height brackets. It will digitize NTSC and PAL video from either composite or S-Video sources.

Video Capture

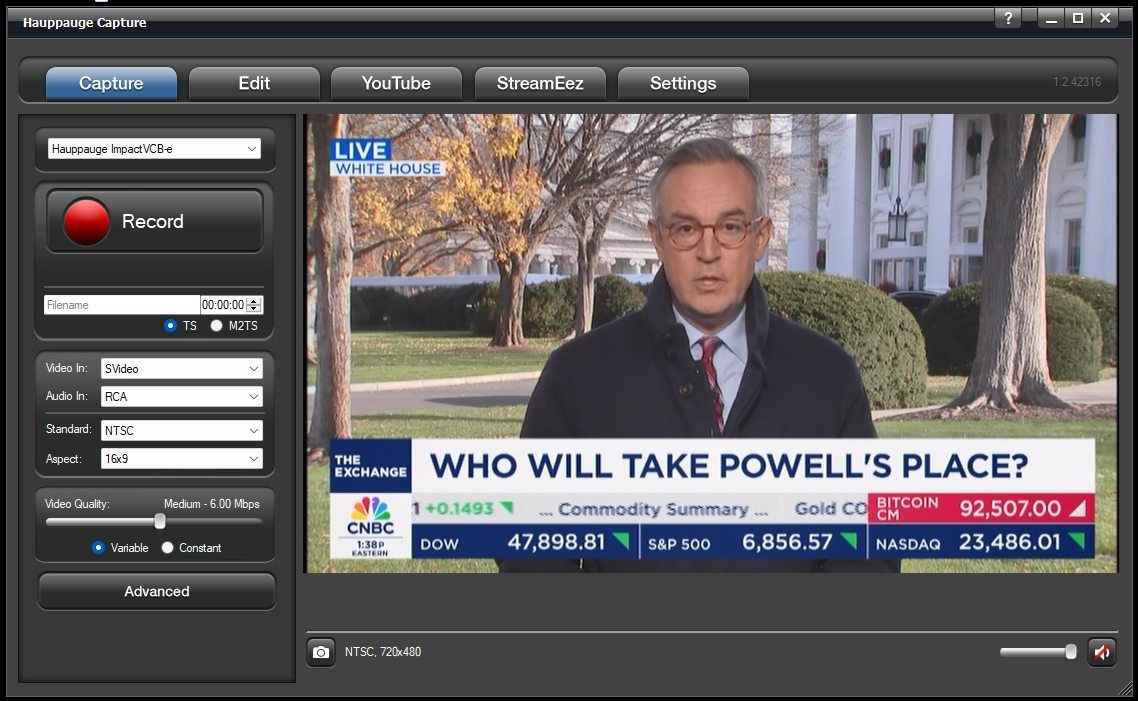

Video from any analog source (composite or S-Video) can be captured as either still frame video images or motion video. The ImpactVCB-e is supplied with the Hauppauge Capture application (download). In addition, if you are developing your own Windows application, the Hauppauge SDK can be used to create a custom application for your system. And for Linux developers, the ImpactVCB-e is included in the latest (4.0+) kernel and in our PPA for Ubuntu.

Live Video Display

The ImpactVCB-e can be used with the WinTV v10 application for video monitoring, video capture and still frame capture, both full screen and video in a window.

ImpactVCB-e Specifications

Bundled software

  • Hauppauge Capture, for simple record and playback

Technical specifications

Video formats

  • Supported video standards:
    • NTSC
    • PAL
    • Secam
  • Stereo / dual channel sound

Recording formats (Hauppauge Capture and WinTV v10)

  • MPEG-2 with stereo audio from composite or S-Video

System Requirements

  • Microsoft® Windows 11, 10
  • PCI Express slot: x1 or x16
  • Internet connection for software updates and activations

ImpactVCB-e Model Numbers

model 1381B: ImpactVCB-e
includes half height and full height brackets and Hauppauge Capture (download)

ImpactVCB-e Gallery
